Automotive PCB Manufacturer
IATF 16949 certified automotive PCB fabrication and assembly support — from automotive PCB prototypes to low volume production. Heavy copper, HDI and metal core boards for ADAS, ECU, BMS and EV programs.
IATF 16949:2016 Certified PCB Production
Our automotive PCB fabrication operates under an IATF 16949 certified quality management system. The certificate details below can be checked directly in the official IATF certificate database.
- Standard
- IATF 16949:2016
- Certificate No.
- RA02-0702/2023
- IATF No.
- 0491945
- Certified Scope
- Production of printed circuit boards
- Valid Through
- December 14, 2026
- Issued By
- AENOR
Automotive-Grade Fabrication for Electrified Vehicles
Automotive electronics combine harsh temperatures, vibration, high switching currents and shrinking control units. An automotive PCB manufacturer has to deliver more than a working board — it has to prove that the board was made consistently, with controlled materials and records that survive supplier audits.

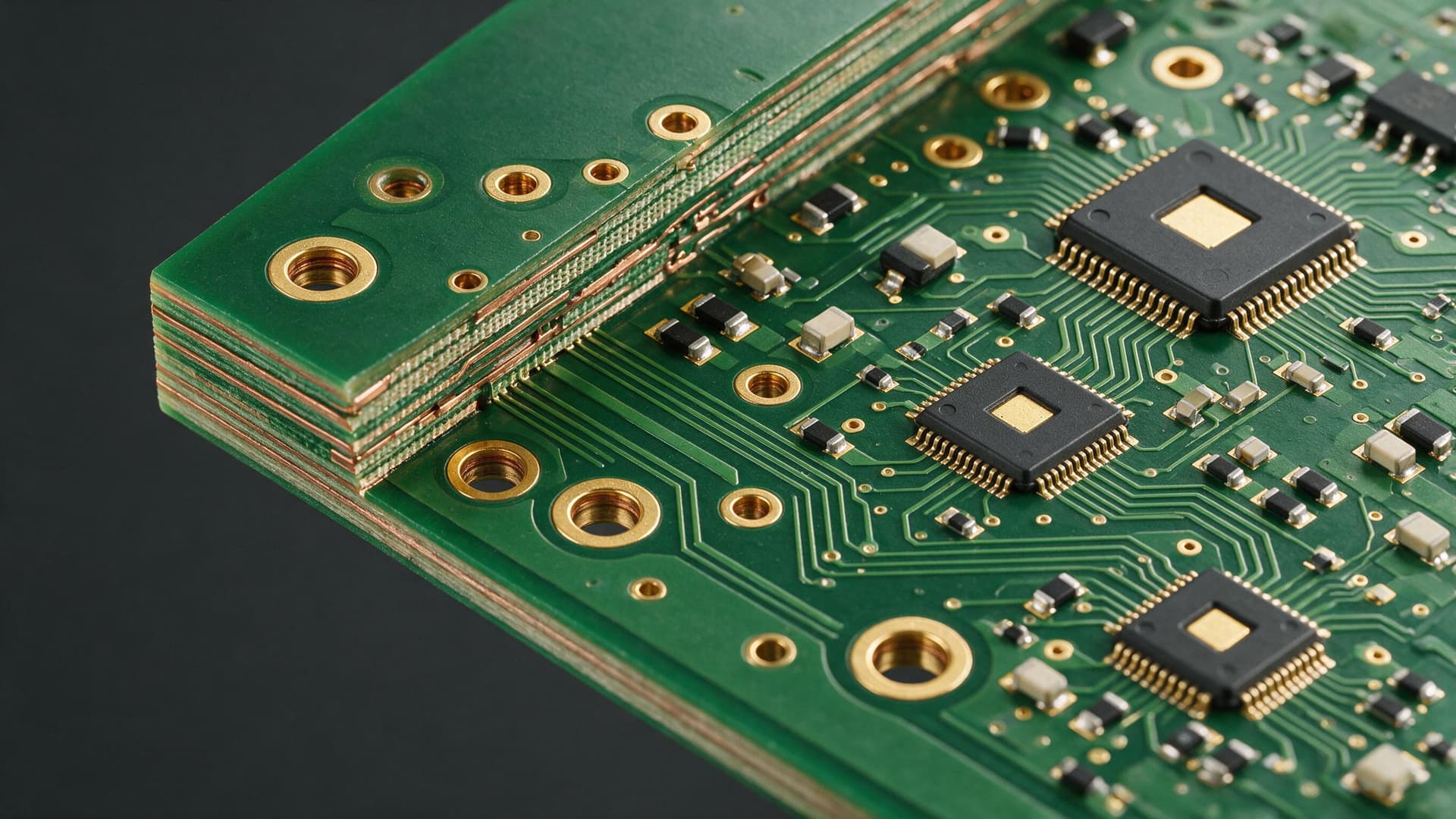

From automotive PCB prototypes for new programs to repeat low volume production, we fabricate boards across rigid, HDI, rigid-flex and metal core technologies, with heavy copper construction for EV power electronics.
- IATF 16949:2016 certified fabrication
- Heavy copper up to 6 oz for BMS and power boards
- HDI with 0.35 mm pitch BGA for ADAS modules
- Prototype to production on the same process flow
Automotive Applications We Support
Board solutions across the vehicle architecture, from sensors to power electronics.
ADAS & Sensors
High-density boards for radar, camera and sensor modules where signal integrity and miniaturization matter.
ECU & Powertrain
Reliable control boards for engine management, transmission and vehicle control units.
EV, BMS & Charging
Heavy copper and thermally capable boards for battery management, on-board chargers and inverter controls.
Connectivity & Infotainment
Multilayer and high-speed boards for telematics, antennas, displays and in-vehicle networking.
Body & Chassis
Robust assemblies for body controllers, gateways, motor drives and comfort systems.
Lighting Systems
Metal core (IMS) and aluminum PCBs for LED headlights, daytime running lights and rear lighting.
Automotive PCB Fabrication Capabilities
The technical envelope covering signal boards, power boards and everything between — including the heavy copper and metal core constructions that electrified drivetrains require.
| Parameter | Capability |
|---|---|
| Layer Count | 1–24 layers rigid; HDI from 4 layers; rigid-flex up to 14 layers |
| Heavy Copper | Base copper up to 6 oz for power distribution and heat dissipation |
| HDI / Microvia | Laser vias from 0.075 mm, blind/buried vias, 0.35 mm pitch BGA |
| Thermal Solutions | Aluminum and copper metal core (IMS), embedded coin/ceramic options |
| Materials | High-Tg, halogen-free and lead-free compatible laminates from qualified suppliers |
| Track / Space | 0.05 / 0.05 mm minimum outer line and space |
| Impedance Control | ±8% with SET2DIL / Delta-L / VNA verification |
| Surface Finish | HASL-LF, ENIG, immersion tin/silver, OSP and selective finishes |
| Electrical Test | 100% open/short testing; flying probe and fixture test available |
From Automotive PCB Prototypes to Production
One supplier and one process flow through the entire qualification journey.
Automotive PCB Prototypes
First articles and A/B sample builds with DFM feedback, typically from a few boards and fast turnaround.
Validation Small Batches
Consistent small batches for bench validation, environmental testing and supplier qualification.
Low Volume Production
Repeatable production builds with retained process and inspection records for traceability.
Prototype and validation quantities start from a single board through our low volume PCB assembly service, with no MOQ.
Quality Controls Built for Audits
Documented processes and retained evidence across fabrication and assembly.
IATF 16949 Certified Fabrication
PCB production is certified to IATF 16949:2016 (certificate RA02-0702/2023), verified through the official IATF database.
DFM & Incoming Inspection
Every design receives manufacturability review; incoming laminates and consumables are inspected against specifications.
In-Process Verification
SPI and AOI on assembly, controlled reflow profiles, cross-section and microsection support on request.
Records & Traceability
Material lots, process parameters and electrical test results are recorded and available for customer audits.
Looking for an automotive PCB assembly manufacturer as well? Assembly runs use the same inspection discipline — see our PCB assembly capabilities for SMT, BGA and X-Ray details.
Automotive PCB FAQ
Certification, fabrication and prototype questions answered.
Yes. Our printed circuit board production is certified to IATF 16949:2016 under certificate number RA02-0702/2023 (IATF number 0491945), issued by AENOR and valid through December 14, 2026. The certified scope is production of printed circuit boards. The certificate can be verified independently through the official IATF certificate database.
Yes. Automotive PCB prototypes start from a few boards with fast turnaround, DFM review and the same material and process controls used in production. This lets qualification teams test representative boards rather than samples made on a different process.

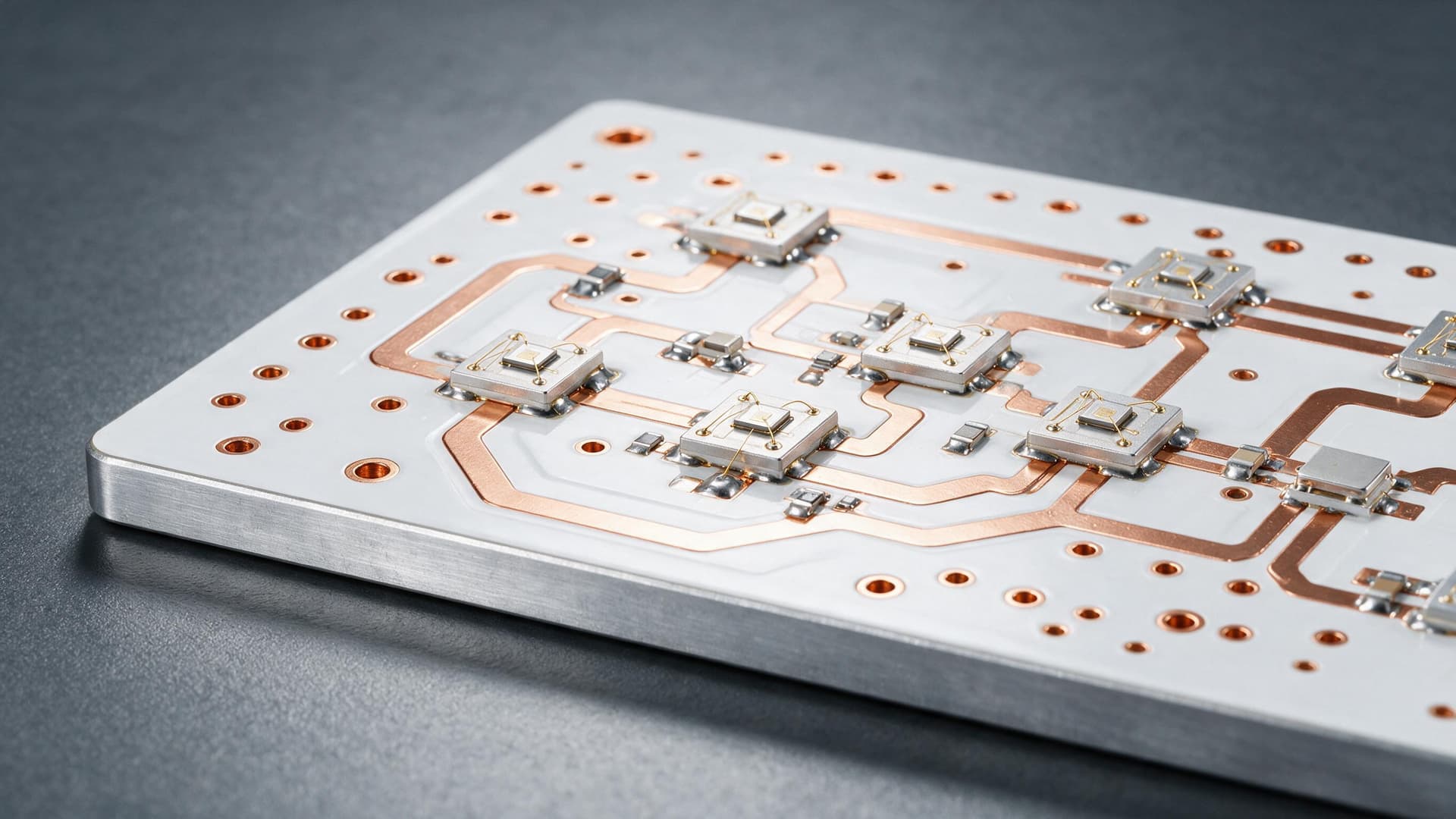

Yes. Base copper weights up to 6 oz are supported for power distribution, battery management systems, on-board chargers and inverter controls. We also fabricate aluminum and copper metal core boards for thermal management, and can advise on stack-up during DFM review.
Multilayer rigid boards up to 24 layers, HDI with laser microvias and 0.35 mm pitch BGA, rigid-flex, metal core (IMS) boards, controlled impedance to ±8%, high-Tg and halogen-free materials, and finishes including lead-free HASL and ENIG.
There is no MOQ for prototype and small batch work — orders can start from one board, which suits automotive PCB prototypes and validation builds. Low volume and repeat production orders are handled with the same quality records and traceability.
Fabrication is the IATF 16949 certified scope, and we additionally provide SMT, THT and mixed PCB assembly with SPI, AOI, X-Ray and functional test. For customer-specific assembly requirements, confirm the documentation and qualification needs in your RFQ so we can agree them in writing.
Prototype boards can be produced on quick-turn schedules, standard fabricated boards typically within several business days, and assembly within 2–5 business days depending on component availability. Exact lead times are confirmed per project in the quote.
Yes. Certificates of conformity, electrical test reports, material declarations, finish information and inspection records are available on request and can be aligned with your supplier-quality documentation package.
Start Your Automotive PCB Program
Send your Gerber files, stack-up requirements and qualification needs — get an automotive-specific quote within 24 hours.
