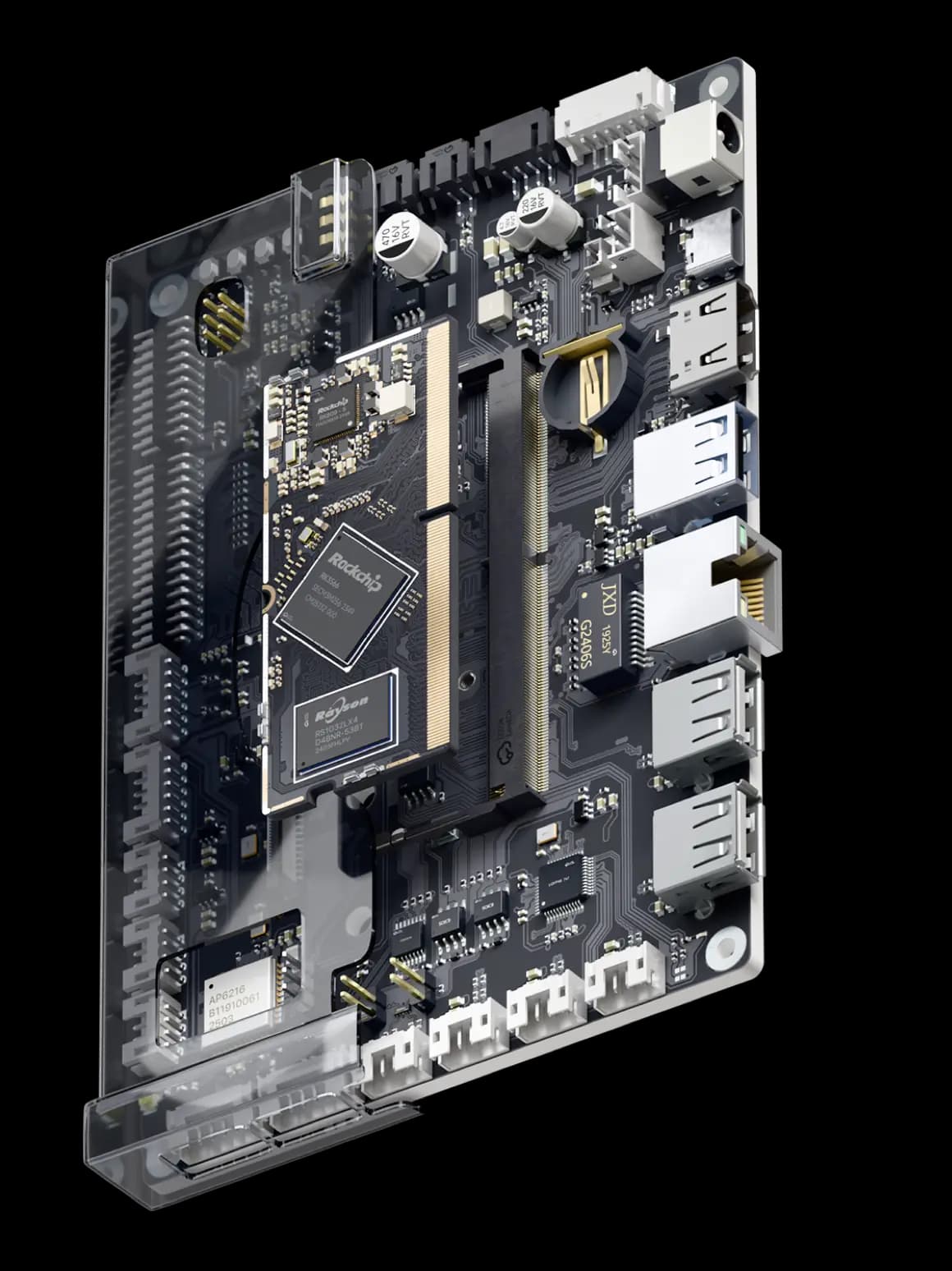

Low Volume PCB Assembly
Prototype and small batch PCB assembly from 1 board, with no MOQ. Full SMT and THT capability, component sourcing, DFM review and AOI/X-Ray inspection — built for engineers who need production-quality boards fast.
Production-Quality PCBA Without High-Volume Commitments
Low volume PCB assembly fills the gap between hand-soldered bench prototypes and mass-production contracts. It exists for design verification builds, certification runs, field trials and products whose demand simply does not justify thousands of boards per order.
Our prototype PCB assembly services for low volume production run on the same equipment as our volume orders — nitrogen reflow lines, automated optical inspection and X-Ray for hidden joints. A small batch is never treated as a second-class build, because today's prototype is often tomorrow's production program.
- No MOQ — order from 1 board
- Turnkey, consigned and partial-kit options
- DFM and BOM review before production
- Traceable components and full inspection records
From First Prototype to Low Volume Production
One consistent process across every stage of your product's early lifecycle.
Prototype PCB Assembly
First articles and engineering builds from a single board. Quick iterations between design revisions with full DFM feedback before every run.
Small Batch PCB Assembly
Tens of assembled boards for EVT, DVT, certification testing, and field trials — built on the same SMT lines as volume production.
Low Volume Production
Stable, repeatable builds in the hundreds for products that do not justify high-volume tooling or annual blanket orders.
Low Volume Assembly Capabilities
The same technical envelope as volume production — no capability is reserved for large orders.
| Parameter | Capability |
|---|---|
| Order Quantity | From 1 board — no MOQ |
| Assembly Types | SMT, THT and mixed technology; single- and double-sided |
| Smallest Component | 01005 (0.4 × 0.2 mm), 0201, 0402 and larger |
| Fine-Pitch & BGA | QFN, QFP, LGA, BGA down to 0.35 mm pitch |
| Supported Boards | FR-4, HDI, Flex, Rigid-Flex, Metal Core (IMS), High-Frequency, Hybrid |
| Soldering | Nitrogen reflow, wave, selective and hand soldering |
| Inspection & Test | SPI, AOI, X-Ray, flying probe and functional test |
| Prototype Lead Time | As fast as 24 hours |
| Standard Lead Time | 2–5 business days depending on complexity |
Why Engineering Teams Choose Us for Small Batches
Low volume should mean low quantity — never low support.
True No-Minimum Ordering
Prototype PCB assembly services for low volume builds start at one board. You never have to over-order just to meet a factory MOQ.
DFM Review on Every Order
Engineers review your Gerber, BOM and pick-and-place files before production, flagging assembly risks at the stage where fixes are still cheap.
Small-Qty Component Sourcing
Authorized-distributor channels and cut-tape support let us source even a few reels or strips of parts, with traceable lot records.
Same Process Controls as Volume
SPI, AOI and X-Ray are applied to small batches too — a 5-board run gets the same inspection discipline as a 5,000-board run.
How to Order
Four steps from design files to inspected, shipped assemblies.
Upload Files
Send your Gerber/ODB++ files, BOM and pick-and-place data through our RFQ form.
DFM & Parts Check
We verify manufacturability, footprint alignment and component availability, including low-quantity sourcing.
Quote Within 24 Hours
Receive a detailed quote with lead time and any engineering recommendations.
Assemble, Inspect & Ship
Boards are assembled, inspected with AOI/X-Ray, tested and shipped worldwide via DHL, UPS or FedEx.
Built for Regulated, Demanding Industries
Our low volume lines support industry-specific qualification and traceability requirements.
Medical Devices
Traceable, document-ready assemblies for regulated medical electronics.
Automotive Electronics
Reliable builds for automotive prototypes and low-volume production programs.
Low Volume PCB Assembly FAQ
Common questions about prototype and small batch assembly.
No. Our low volume PCB assembly service starts from a single board, so there is no MOQ to meet. Whether you need one engineering prototype or a few hundred boards for low volume production, the same SMT lines, process controls and inspection standards apply.
Prototype PCB assembly can ship in as fast as 24 hours when materials are in stock. Standard small batch PCB assembly takes 2–5 business days depending on board complexity and component availability. We will confirm the exact lead time in your quote.
Yes. We offer full turnkey PCB assembly services for low volume production, purchasing from authorized distributors with cut-tape support for small quantities. You can also choose consigned or partially consigned kits if you already hold the parts.
Prototype builds (typically a handful of boards) prioritize speed and design feedback for first-article verification. Small batch assembly covers tens of boards for EVT/DVT, compliance testing and field trials, while low volume production means repeatable builds in the hundreds. The tooling, documentation and quality records are consistent across all three, so scaling up does not require changing supplier.
We need Gerber (RS-274X) or ODB++ fabrication files, a BOM with manufacturer part numbers, and pick-and-place (centroid) data. If any of these are incomplete, our engineers can help during the DFM review.
Yes. Every build goes through SPI and AOI, and boards with BGA, QFN or other hidden-joint packages receive X-Ray inspection. Flying probe and functional testing are available on request, regardless of order quantity.
Yes. We assemble FR-4, HDI, flex, rigid-flex, metal core (IMS), high-frequency and hybrid boards. You can learn more about the board technologies on our capabilities overview, or contact us with your stack-up for a feasibility review.
Start Your Low Volume Build
Upload your Gerber files, BOM and pick-and-place data — get a detailed quote within 24 hours, with no minimum order quantity.
